Description
Walk in environmental chamber is important experimental equipment for simulating a high temperature, environment improvement, product stability and equipment testing for high-performance electronic products.
The environmental test chamber is an important production process for similar production enterprises to improve product quality and cost performance.
Technical Specification
| Name | Walk In Environmental Chamber Walk In Test Chamber |
| Model | Walk-Ins |
| Internal dimension (mm) | Custom Made |
| Overall dimension (mm) | Custom Made |
| Temperature range | -70℃ ~ +150℃ |
| Humidity range | 10% ~ 95% RH |
| Temperature fluctuations | ± 2.0℃ |
| Humidity fluctuations | ± 5.0% RH |
| Heating rate | 1℃ / min |
| Cooling rate | 1 ℃ / min |
| Controller | Programmable color LCD touch screen controller PC Link, Ethernet port |
| Cooling system | Mechanical compression refrigeration system |
| Thermal insulation | Polyurethane foam |
| Noise | Less than 85 dBA |
| Power Supply | 400V 50HZ |
| Environmental conditional | 5℃～+40 ℃ ≤85% RH |
Details of the Advantage
 |  |

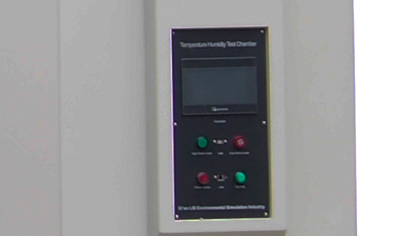

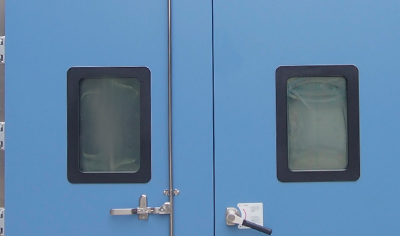

| Large Window | Programmable Controller |
Application
Temperature and humidity test chamber is widely used in power electronics, computer complete machines, terminals, automotive electronic products, power supplies, monitors and other fields.
Feature
●Professional refrigeration technology and electronic cooling water regulator make it operate efficiently;
●Equipped with RJ45 and RS485 standard communication interface, remote temperature control system;
●Uniform temperature and humidity, circulation system, more uniform temperature and humidity distribution, avoid any dead angle
●One-piece walk in test chamber and split test chamber are optional
